Imagine being given the duty of capturing a video of one thing invisible: Wind. The problem is each frequent and integral sufficient that NASA tasked itself with constructing a digicam as much as the duty – and it really works utilizing polarization.
The Self-Aligned Focusing Schlieren, or SAFS for brief, is a digicam that may see air motion, an important device that helps scientists and engineers take a look at the airflow round plans, rockets, and different autos.
Research into the SAFS dates again to 2020 from NASA’s Langley Research Center, however NASA has not too long ago shared a glimpse at what the tech appears to be like like, now that the know-how has gained a number of awards, together with the 2025 NASA Government of the Year. Why did a digicam earn the very best award that NASA honors new tech with? The system permits engineers to check aerodynamics with a a lot easier, low-cost setup than earlier strategies.

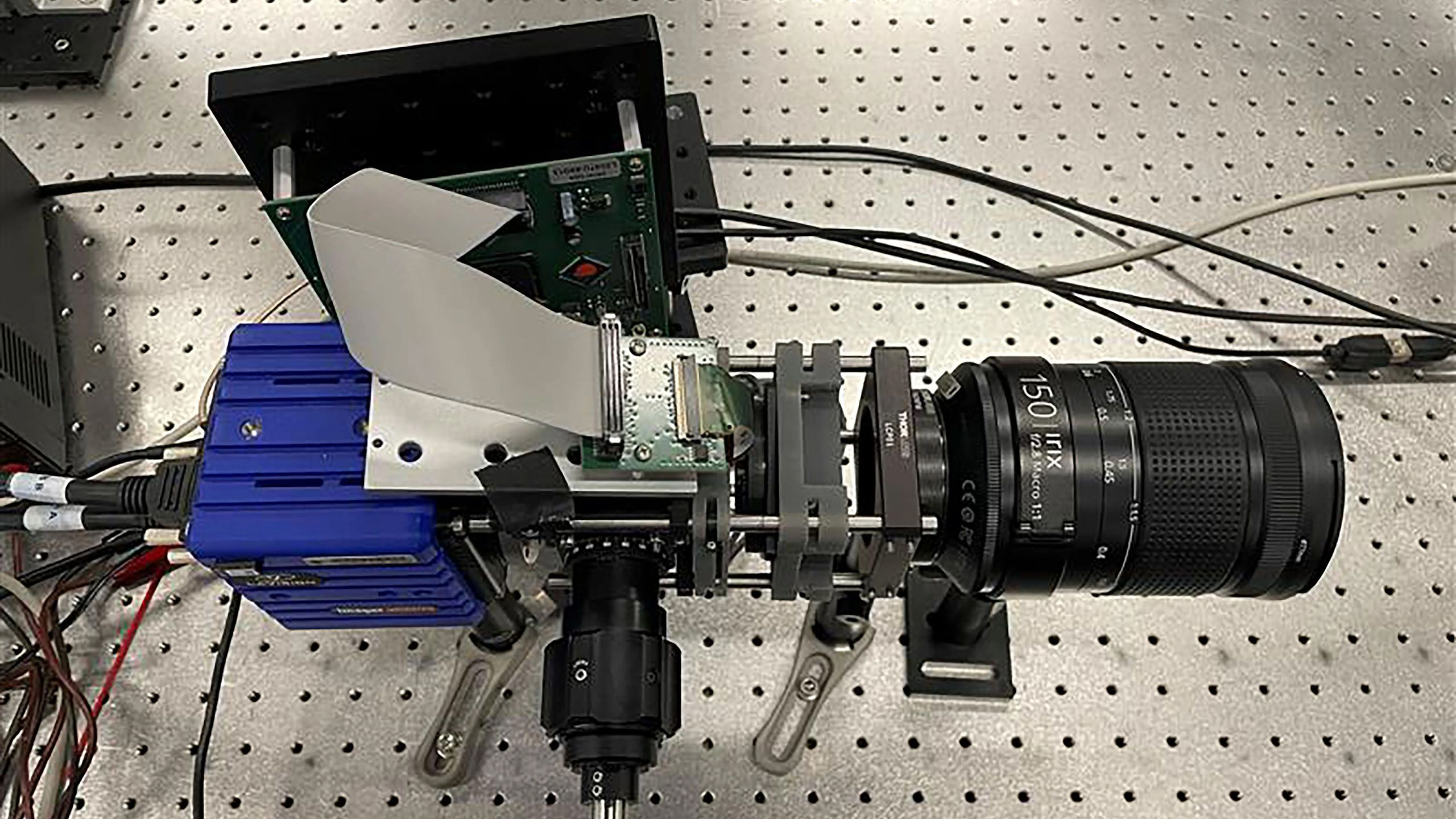

The key to the SAFS success is definitely associated to one thing already in lots of photographers’ baggage: a polarizing filter. The system is, in fact, a bit extra advanced than twisting a polarizer filter onto a digicam lens, however the digicam is definitely constructed utilizing a “commercial-off-the-shelf camera” and mounted very similar to an outsized lens.
Earlier strategies of visualizing wind used two exactly aligned screens and a particular digicam that would see air motion by detecting modifications within the density. But, the sooner centered schlieren imaging demanded a degree of precision that meant setup was a multi-day course of that may very well be disrupted by an unintended bump.
The SAFS as an alternative makes use of a single grid with polarization. Polarizers filter gentle that’s coming from particular instructions, and integrating that idea has helped the digicam to work and not using a secondary display, condensing the setup time from weeks to minutes.
As a NASA patent explains, gentle passes by a condenser lens and a linear polarizer in the direction of a beam splitter. The gentle passes by the one grid across the object being examined. A reflective background mirrors the sunshine, which suggests the sunshine is then passing the item a second time. The gentle then passes by the grid a second time earlier than being captured by the digicam.
If that sounds difficult, think about how advanced the earlier system was. As NASA described the sooner methodology: “It’s the equal of lining up two window screens on reverse sides of a room so their patterns match precisely.”
Now, NASA uses the technology to improve predictions on takeoff and landings for new aircraft, but, the system has been adopted beyond NASA, including in more than eight different countries.
“When researchers can see and understand air movement in ways that were previously difficult to achieve, it leads to better aircraft designs and safer flights for everyone,” said Brett Bathel, the co-inventor of the SAFS alongside Joshua Weisberger and a member of the team at NASA’s Langley Research Center.
