When the Artemis 2 Orion crew capsule returns to Earth after flying across the moon, it should hit the discernible environment some 75 miles above the Pacific Ocean at a blistering 24,000 mph, quick sufficient to fly from New York to London in lower than 10 minutes.

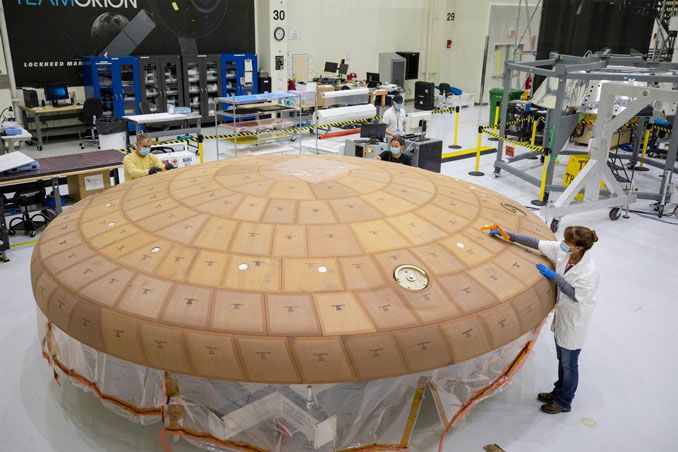

Within seconds, temperatures throughout its 16.5-foot-wide warmth protect will climb to some 5,000 levels — half as scorching because the seen floor of the solar — because the ship quickly slows in an electrically charged fireball of atmospheric friction.

The 4 astronauts on board — Artemis 2 commander Reid Wiseman, Victor Glover, Christina Koch and Canadian astronaut Jeremy Hansen — are relying on the warmth protect to maintain them secure, in a snug surroundings, right through the height heating zone earlier than a parachute-assisted splashdown within the Pacific.

“We have high confidence in the system, in the heat shield and the parachutes and the recovery systems we put together,” Amit Kshatriya, NASA’s affiliate administrator, mentioned Thursday. “The engineering supports it, the Artemis 1 flight data supports it. All of our ground tests support it, our analysis supports it and tomorrow, the crew is going to put their lives behind that confidence.”

The crew and mission managers are assured, they are saying, regardless of main issues with the warmth protect used throughout the unpiloted Artemis 1 take a look at flight in 2022 when the Avcoat materials making up the protect developed sub-surface cracks and gasoline pockets that blew away chunks of the protecting barrier’s outer “char” layer.

Based on almost two years of exams and evaluation, engineers had been stunned to find the harm was almost definitely brought on by the Avcoat materials’s lack of permeability throughout a particular part of the re-entry when the protect was experiencing decrease exterior temperatures whereas inside layers had been nonetheless extraordinarily excessive, producing gasoline that might not escape.

Agency managers determined to order a unique warmth protect design for downstream Artemis missions. But the warmth protect for the Artemis 2 flight, equivalent to the one used with Artemis 1, was already put in. Replacing it with a brand new design would have delayed the mission by 18 months or extra.

Instead, NASA managers opted to launch Artemis 2 “as is” based mostly on take a look at information and an exhaustive evaluation that indicated the protect would work correctly if the re-entry trajectory was modified to eradicate the temperature and strain swings that contributed to the harm seen after the Artemis 1 flight.

“They did a tremendous amount of research, a lot of groundbreaking research in some facilities that we had not used before, and they discovered the root cause,” Wiseman mentioned.

“They did wind tunnel testing and laser testing and hyper-velocity testing, and so they decided that if we are available in with this lofted profile … that this warmth protect will likely be secure for us to go fly.

“So I think all that points in the direction of goodness,” he mentioned. “And I think if you, as a human being who was about to board this rocket, had sat in the meetings that we sat in and listened to the experts and gone through the data with them, you would have the same comfort.”

What went flawed with Artemis 1

During the Artemis 1 mission, the unpiloted capsule adopted a deliberate “skip” trajectory, comparable in idea to skipping a flat stone throughout nonetheless water. After an preliminary dip into the higher environment, the Artemis 1 capsule skipped again out once more earlier than making its ultimate descent to splashdown.

The skip re-entry helps scale back the spacecraft’s velocity will providing NASA a wider vary of splashdown choices in case unhealthy climate makes a focused touchdown website problematic.

Despite the warmth protect harm seen after the flight, the Artemis 1 re-entry was profitable. The capsule landed on the right track and officers mentioned had any astronauts been aboard, they’d have had no issues. But the harm triggered alarm at NASA.

“NASA identified more than 100 locations where ablative thermal protective material from Orion’s heat shield wore away differently than expected during reentry into Earth’s atmosphere,” NASA’s Office of Inspector General wrote.

“While the warmth protect efficiently protected the Crew Module and its programs throughout the Artemis 1 mission, upon inspection after Orion’s restoration, engineers famous sudden variations within the look of the warmth protect Avcoat — the ablative materials that helps shield the capsule from the warmth of reentry.

“Specifically, portions of the char layer wore away differently than NASA engineers predicted, cracking and breaking off the spacecraft in fragments that created a trail of debris rather than melting away as designed. The unexpected behavior of the Avcoat creates a risk that the heat shield may not sufficiently protect the capsule’s systems and crew from the extreme heat of reentry on future missions.”

Testing revealed the harm was associated to the warmth protect’s permeability, or relatively, its lack thereof.

Entry heating is what makes the Avcoat’s outer char layer permeable sufficient to permit gasoline to flee. The Artemis 1 warmth protect labored usually throughout its preliminary descent into the environment, But when it climbed again out, re-entry heating eased and the outer char layer grew to become a lot much less permeable.

The underlying materials was nonetheless extraordinarily scorching, present process a course of generally known as pyrolysis — combustion with out oxygen — and producing gasoline that had no solution to escape. Those buildups finally blew chunks of the warmth protect’s outer layers away.

“They go back up from that first entry, they’re still hot, they’re still off gassing,” mentioned an engineer conversant in the investigation. “The fact that the material itself isn’t permeable enough is causing that gas pressure to build up now, very rapidly, because they’re still hot. But the char layer has paused.”

The outer char layer, he mentioned, is “the only part of the Artemis 1 and Artemis 2 heat shield that actually allows it to breathe, or allows it to off-gas. So once it stops, now there’s no mechanism in the deeper parts of the heat shield for that gas to escape.”

“So the pressure built up, and as the capsule came back down and started reheating, the pressure was already there. All those cracks, the pockets had already formed. And now, bang, bang, bang, pop. Avcoat started sloughing off during that second entry.”

A modified re-entry trajectory ought to guarantee good warmth protect efficiency

Engineers verified in lab exams {that a} modified skip-entry trajectory, one with an preliminary dip into the higher environment adopted by a shorter-duration climb again out would enable the Avcoat to “breathe” all through, stopping the formation of cracks and trapped gasoline. An impartial evaluation workforce agreed with these conclusions.

Interestingly, Apollo engineers had been conscious of the Avcoat permeability problem and designed that program’s warmth shields accordingly. Apollo capsules additionally used skip re- entry trajectories and had no issues. But the Avcoat used within the Artemis warmth shields was reformulated barely, and that ended up affecting its permeability.

In any case, the draw back to the modified re-entry trajectory for Artemis 2 will scale back the gap the Orion capsule can fly to keep away from unhealthy climate within the deliberate splashdown zone. It additionally will lead to greater sustained heating throughout the descent, however engineers say that’s precisely what is required to take care of permeability within the outer char layer and guarantee good efficiency.

Former astronaut Charles Camarda disagrees, strongly criticizing the “fly as is” determination. He argues engineers don’t absolutely perceive the foundation reason for the Artemis 1 warmth protect harm and can’t precisely predict how the Artemis 2 warmth protect will carry out or whether or not the revised entry trajectory might need unintended penalties.

In a letter to the NASA administrator, Camarda wrote that “history shows accidents occur when organizations convince themselves they understand problems they do not.”

Like Wiseman, Glover says he trusts the evaluation of the Artemis 1 downside, saying critics “haven’t been in these meetings from day one and met the team and looked them in the eye and shook their hands at the ends of these meetings.”

That mentioned, he added, “I don’t want to discount the things that they’ve said. Any time you talk about fire, any time you talk about entry and heat shields, talk about parachutes, these are high risk things that … don’t have fault tolerance built in. They have to work.”

“And so I appreciate all of that nudging and poking and prodding that they’ve caused. They have made us sharpen our pencils and put more due diligence, more vigilance into that process. But I think we’ve done that. And so I think the crew is comfortable because of that team.”
