Gadget Industry Hid a Working PC Inside a Computer Mouse

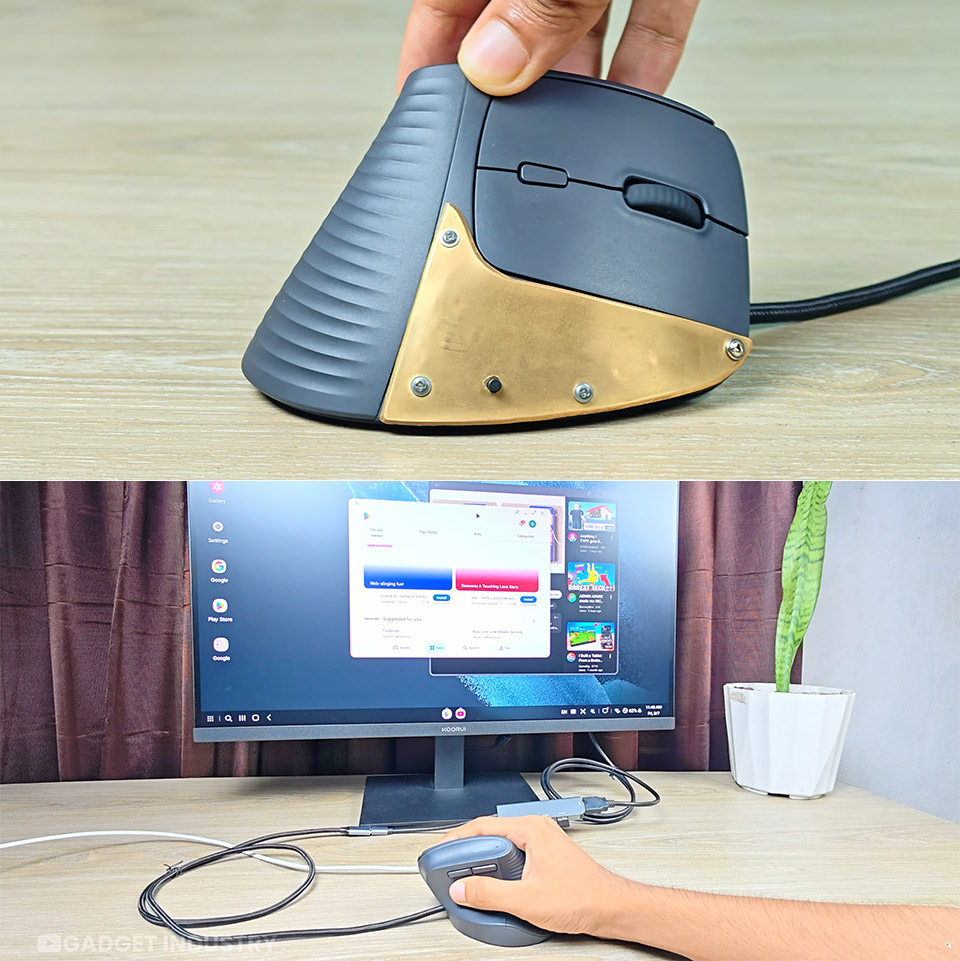

A daily-looking mouse sits on a desk, clicks as anticipated, and nonetheless strikes a cursor. Same object additionally boots a desktop on a monitor and performs Minecraft. That collision of jobs is the entire level of YouTuber Gadget Industry’s newest construct: a Samsung cellphone’s pc stuffed right into a pointing system that by no means stopped being a pointing system.

Samsung DeX is the key sauce that permits this mission to work. Compatible Galaxy telephones can primarily remodel your cellphone into a little bit Windows machine by way of the USB-C connector, full with a full taskbar, resizable apps, and mouse management, so long as you join a show to the port. The Gadget Industry, then again, determined to take away the entire non-essentials, leaving solely the meat of the cellphone: the core logic board with processor, reminiscence, and storage, all related to the radio bits, and the tiny daughterboard that homes the USB-C jack, in addition to the cameras and pointless bulk eliminated on the bolt.

There isn’t a lot house inside a mouse to play with, so the unique cellphone battery simply wouldn’t match. So they needed to get their fingers filthy by splicing the ribbon connector from the previous battery to a a lot smaller cell after which soldering it collectively. The new battery pack is simply large enough to get the board in addition. As it seems, as soon as DEX is up and operating, energy flows in over the identical USB-C line that provides the monitor, so the factor can run so long as the wire is related. The mouse electronics require a exact 1.5 volts, so a tiny little buck converter was added to take the cellphone board’s provide and dial it again a notch, permitting the sensors and different bits to perform with out counting on these previous AA cells. To make room, they needed to hack out the plastic battery posts contained in the shell.

Not solely did energy must be trimmed down, however so did the wiring. So they eliminated the entire cumbersome authentic connectors off the boards and changed them with extremely skinny copper wire sourced from classic headphones. They even needed to create a bendable USB-C extension in order that the twine may attain the entrance of the mouse with out getting in the way in which. With the cellphone’s energy button not on the cellphone, they needed to change a number of micro switches with a brand new button.

Heat was the one issue that almost ruined the mission utterly. A cellphone board is constructed to resist the entire warmth it generates, but when it’s positioned in plastic, it can overheat. So Gadget Industry needed to go and minimize some sheet brass, solder it in, after which go loopy cleansing the skin. Then they used thermal paste to wedge a particular interior plate in there, permitting brass to switch warmth to the shell you relaxation your palm on. It’s loads to maintain issues cool whereas operating 4K video, doing gentle multitasking, or taking part in Minecraft, but it surely will get heat sufficient to remind you that there’s nonetheless a cellphone chip in there with nowhere to cover.

Don’t hassle making an attempt to kind on it; you’ll nonetheless want a separate keyboard. Storage is no matter your authentic donor cellphone had, and the wi-fi on the board works advantageous, however the antenna design is a little bit goofy, so don’t count on lengthy vary. Shutting it down? There’s solely a change on the facet and no fancy on-screen menu, however regardless of all of that, it’s a very humorous little hack: you’re manipulating the merchandise that’s really rendering the desktop you’re viewing.
