Intermittent swimming promotes the power effectivity of fish-like robotic actions

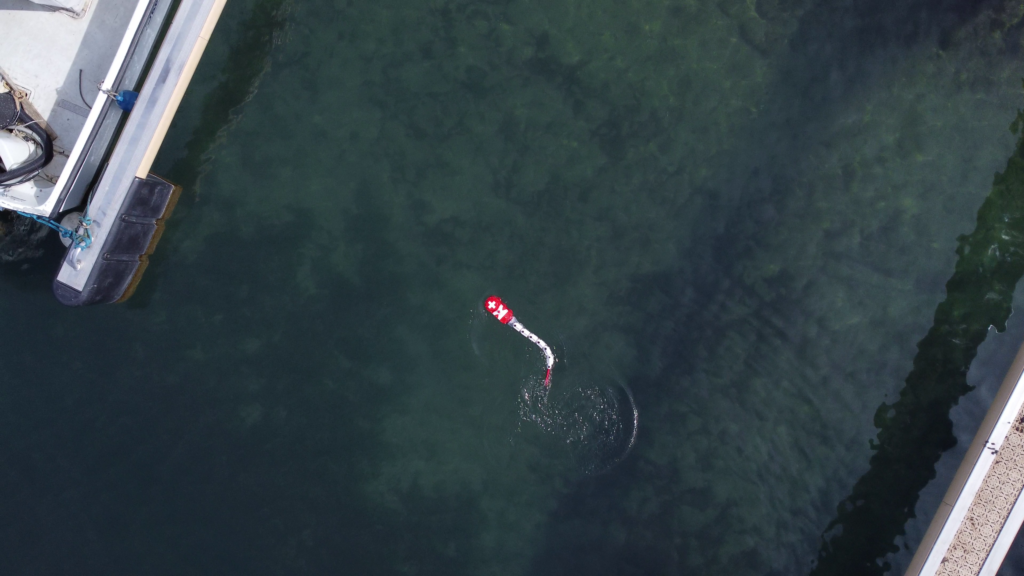

Image credit: Xiangxiao Liu, Francois A. Longchamp, and Louis GeverBiorobotics Laboratory, EPFL

Improving power efficiency can successfully prolong the time a robotic can function and cut back battery load, enabling lighter, extra versatile, and extra sturdy robotic programs. Nature has developed optimum energy-saving locomotion methods by way of billions of years of pure choice, offering unparalleled blueprints for robotic optimization. Among various modes of aquatic locomotion, intermittent swimming, additionally referred to as bout-and-glide swimming, is a widespread adaptive conduct in aquatic organisms of a variety of sizes, together with larval zebrafish, red-nose tetra, koi carp, and even whales.

This pure bout-and-glide gait options alternating movement phases: quick durations of energetic physique and tail undulation for propulsion, adopted by passive gliding with a streamlined, straight physique posture. It is well known that this intermittent swimming gait is intently related to optimizing organic power, making it of nice analysis worth to transplant and discover such pure movement mechanisms into robotic management programs.

In this examine, a world joint crew comprising researchers from EPFL (Switzerland), Duke University (USA), and Instituto Superior Tecnico (Portugal) developed a larval zebrafish-inspired robotic platform (ZBot) to systematically examine the intrinsic traits and efficiency benefits of bout-and-glide intermittent swimming in comparison with steady swimming.

This analysis centered on 4 scientific questions:

1. Which neural management mechanism underlies intermittent swimming locomotion?
To validate the bioinspired energy-saving mechanism of fish intermittent swimming, the crew developed a biomimetic robotic, ZBot (Figure 1), scaled up 200 occasions from a larval zebrafish, with a physique size of 80 cm and a weight of two.8 kg. The ZBot replicates the larval zebrafish’s morphological options, segmented physique construction, and center-of-mass distribution. Its versatile tail consists of six servomotor-driven segments to simulate pure fish undulation, whereas the top integrates core gadgets, together with a central controller that serves as its nervous system, high-precision cameras, and real-time energy meters. Equipped with expandable sensor interfaces, ZBot helps various experimental wants, together with visual-motor processing [2] and vestibular system analysis.

Figure 1. ZBot and actual larval zebrafish.

2. Can intermittent bout-and-glide swimming obtain larger power effectivity than steady tail-beating swimming, and in that case, below which situations?

The crew from EPFL and Duke University collaborated to construct a neurocomputational mannequin simulating zebrafish neural circuits, centered on Central Pattern Generators (CPGs), bout-gate modules, and ventral spinal projection neurons (vSPNs). The CPGs generate steady rhythmic oscillation alerts to generate fundamental swimming undulations, with the bout gate appearing as a core switching unit: it accumulates enter alerts through a leaky integrator and triggers CPG-driven tail undulation solely when reaching a set threshold, forming the pure intermittent “active bout + passive glide” swimming rhythm. The simulated vSPNs additional regulate tail deflection angle, enabling versatile maneuver swimming route..

By adjusting parameters corresponding to tail oscillation frequency, amplitude, and bout gate threshold, ZBot can precisely replicate a number of swimming gaits of larval zebrafish, together with sluggish straight swims, routine turns, and J-turns (Figure 2). The EPFL-Duke crew prolonged the mannequin to assemble an end-to-end framework for the larval zebrafish’s visually guided optomotor response, reworking the retinal enter into motor output. This framework efficiently reproduced the optomotor response in each ZBot and a digital twin simulation, simZFish.

Figure 2. Top view of ZBot bout-and-glide swimming in water (1 cP, 64000 ≤ Re ≤160000), reasonably viscous liquid (213.9 cP, 37.4 ≤ Re ≤ 448.8, intermediate circulate regime), and extremely viscous liquids (457.0 cP, 1.0 ≤ Re ≤ 87.5, near viscous circulate regime). Recorded at 5 frames per second.

3. Are the energy-saving benefits of intermittent swimming fixed in viscous fluid regimes, e.g., with low Reynolds quantity, as seen for tiny larval zebrafish and microbionic swimming robots?

Reynolds quantity is a dimensionless amount that quantifies the relative magnitude of inertial forces and viscous forces appearing on a fluid circulate or a stable object shifting by way of fluid. A decrease Reynold quantity (<1000) signifies the fluid dynamics in viscous regime, the place the shifting object experiences the viscous drive to a excessive diploma. The next Reynolds quantity (>1000) signifies the fluid dynamics in inertial-dominated regime, the place inertial forces overwhelm viscous forces.

Large creatures, corresponding to whales, swim in turbulent circulate regimes with a excessive Reynolds (Re) quantity. Small creatures, corresponding to tiny larval zebrafish, swim in an intermediate circulate regime that’s extra strongly influenced by viscous drag. Thus, it’s fascinating to look at the results of various circulate regimes on dynamic conduct throughout intermittent swimming gaits. Leveraging the inverse relationship between Reynolds quantity (Re) and fluid viscosity, the crew modified the fluid environments to imitate aquatic organisms of various sizes by adjusting liquid viscosity (Figure 2 and Video 1). The reasonably viscous fluid has a viscosity of 213.9 cP, akin to fruit topping syrup; the extremely viscous liquid has a viscosity of 457.0 cP, akin to the usual make-up cleaning oil. Increased viscosity considerably shortens ZBot’s touring distance, with the displacement in extremely viscous fluid (473.0 cP, 1.0 < Re < 87.5) only one/30 of that in regular water (1 CP, 64000 < Re < 16000. Intriguingly, viscosity has minimal affect on turning efficiency: ZBot’s turning angle per bout is roughly 60 levels in regular water and stays at 45 levels in extremely viscous fluid.

Video 1. ZBot was examined in fluids of various viscosities (by mixing water with carboxymethyl cellulose sodium salt)

4. What mechanisms result in the power effectivity of intermittent swimming?

A well known speculation on the advantages of intermittent swimming is that it improves power effectivity throughout swimming. Through experiments, the crew confirmed that intermittent swimming reduces power consumption throughout all achievable velocities in comparison with steady tail-beating swimming, in each high- and low-Reynolds-number regimes. However, because of the restricted bout and glide cycle, the utmost velocity when utilizing intermittent swimming is just about 60% of that when utilizing steady tail-beating swimming.

A preferred cause for this power saving is that intermittent swimming enhances the switch of power from kinematic tail actions to the physique’s dynamic displacement within the liquid. This “fluid dynamics” speculation has a number of variants, however primarily proposes that the straight-tail posture throughout gliding phases reduces drag drive and thus saves power. In this examine, the crew proposed and explored one other speculation, the “actuator efficiency” speculation. Bout-and-glide swimming enhances the switch of power from electrical energy (or chemical power in fishes) to kinematic tail actions. In different phrases, intermittent swimming permits the robotic (or fish) to make use of their actuators (or muscle groups) in additional energy-efficient regimes than steady swimming.

Both robotic servomotors and organic fish muscle groups comply with an inverted U-shaped effectivity curve, reaching optimum power conversion solely below average load situations. At decrease swimming velocities, the place intermittent swimming happens, steady tail-beating causes actuators to function persistently in underloaded, inefficient states, leading to wasted power. In distinction, the bout-glide cycle modulates actuator working situations: the quick bout part retains motors throughout the high-efficiency load vary, and the glide part minimizes the inefficient operation. This cyclic regulation promotes the general actuator power conversion effectivity.

Importance of this analysis

This examine takes pure animal motion as its core inspiration, efficiently translating evolutionary organic benefits into enhancements in robotic engineering efficiency, with worth in each the life sciences and robotic engineering. For organic analysis, the bioinspired robotic platform allows mechanistic decoding of neural-motor-energy correlations, shifting organic statement from correlational observations to causal verification and offering a brand new device for vertebrate neural circuit analysis. For the robotics trade, this analysis verifies and supplies a method for robotic management to decrease power consumption.

By studying from pure intermittent locomotion methods, underwater robots can undertake adaptive gait switching, intermittent bout-and-glide mode for improved energy-saving endurance throughout low- and medium-speed cruising, and steady driving mode for high-speed emergency maneuvering.

---

---

---
