Single Atom Digital camera May See Infacet Quantum Computer systems

Today, it’s fairly attainable to see individual atoms in photographs. It’s one of many nice triumphs of imaging. What, then, of the inverse? Can you employ a single atom to seize a picture?

Single atoms are in all probability not changing smartphone cameras quickly, however an atom can be utilized to measure mild. One analysis group on the Institute for Molecular Science in Okazaki, Japan, has now used this skill to develop what they name an “atom camera,” which might seize patterns of sunshine far too small to see with normal optical microscopes.

More than a physics demonstration, the atom digicam is also a chic option to see inside sure quantum computer systems. The atom digicam’s creators are additionally constructing quantum computer systems that use impartial atoms as qubits.

“We expect the atom camera to serve as a valuable diagnostic tool for this effort in our laboratory, and in other similar efforts worldwide as well,” says Kenji Ohmori, a physicist on the Institute for Molecular Science.

Ohmori and colleagues revealed their work in Nature Communications on 29 May.

The quantum photographer’s information

The key element of this atom digicam is an optical tweezer, an instrument that traps particles by squeezing them with centered laser beams. The instrument has develop into a typical instrument of physicists who deal with atoms. A tweezer can catch an atom, then transfer it round or maintain it in place. The researchers chilled a rubidium-87 atom to close absolute zero and immobilized it inside an optical tweezer. The atom digicam primarily measures how this atom responds to its atmosphere. As mild falls on an atom, it imparts power onto a number of the atom’s electrons. This shifts the energy states of these electrons.

By observing these shifts, the researchers might gauge both the sunshine’s depth or its polarization. They might measure these properties of their tweezer’s mild, or they may measure a second sample of sunshine solid on the atom.

These patterns are a lot bigger than a single atom, so how do you flip measurement right into a full picture? Because the atom have to be stored nonetheless, it’s important to transfer the sample itself throughout the atom. The researchers dragged a sample 100 nanometers at a time—up, down, or to the facet—and measured the depth or the polarization of the sunshine at every step.

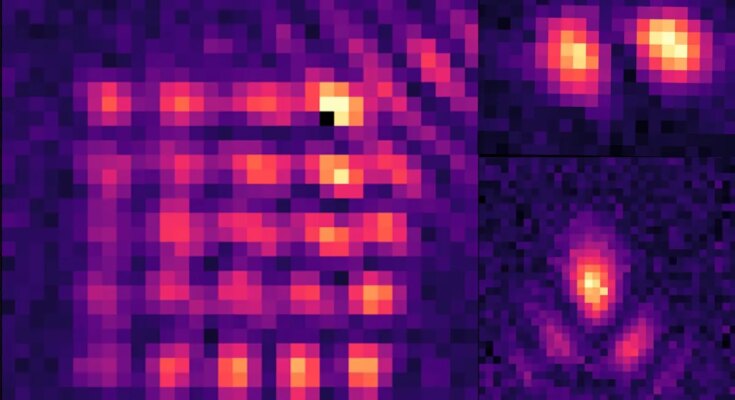

In the tip, that they had a 2D map of measurements—which they may render right into a nanoscale “photograph”. They photographed a number of completely different patterns utilizing this methodology.

The Okazaki researchers aren’t the primary to make use of atoms for measuring mild. Since the 1990s, physicists have tried atoms to cheat the diffraction limit of seen mild: the tiniest function that typical optics can see. Atoms are considerably smaller than this, so an atom arrange within the correct manner might theoretically resolve even tinier particulars.

As cold-atom physics has grown extra refined, extra labs have tried their fingers (and optical tweezers) at making atoms match for goal. In 2022, two teams on the Institute of Photonic Sciences in Barcelona and at University of California, Berkeley individually used rubidium-87 atoms to seize the depth of oncoming mild. The Berkeley group reached a decision of 300 nm, however they believed their work was solely an preliminary step.

“We envisioned that the method could be made much more sensitive,” says Dan Stamper-Kurn, a physicist who was concerned within the aforementioned work, however not the Okazaki group.

In its earlier work, the Berkeley group studied a comparatively giant shift in power state. The Okazaki group as an alternative measured a far subtler shift linked to what physicists name a hyperfine transition. This has a number of benefits. For one, the Okazaki group might measure its mild’s polarization, along with its depth. For one other, the hyperfine transition is way extra delicate: In principle, the Okazaki group can render options as small as 25 nm. (Smaller than that, quantum uncertainty comes into play.)

The extra exactly you realize your atom’s place, the higher your decision. This is why the atom have to be stored as nonetheless as attainable.

Qubits calling for photographers

What might an “atom camera” seize? Quite a number of issues, truly, physicists say.

“There’s a lot of relevance to this, because these so-called optical tweezers are what we use in many experiments nowadays,” says Johannes Zeiher, a physicist on the Ludwig-Maximilians-Universität München in Germany, who was additionally not concerned with the Okazaki group.

Optical tweezers are notably prized on the planet of neutral-atom quantum computer systems, just like the Okazaki group are constructing. These quantum computer systems run on atoms equivalent to rubidium-87 chilled to near-absolute-zero inside a vacuum chamber. Optical tweezers can lure the atoms, which act as qubits, and maintain them or transfer them round. Computing with two impartial atoms may contain exactly positioning them and firing a laser to light up each.

Such a lightweight beam is nearly by no means uniform. Even a small beam can comprise all method of subtleties, particularly quirks of polarization, which might intervene with a qubit and trigger it to lose coherence and collapse. It’s essential, then, for a qubit operator to know the tiniest particulars of their mild, however physicists in the present day are nonetheless looking for a technique to reliably do that.

Traditional optics typically aren’t appropriate for the duty of seeing inside a quantum laptop’s vacuum chamber, since they can also simply disturb qubits. The problem turns into much more tedious as neutral-atom quantum computer systems achieve extra qubits and develop into extra advanced to regulate.

The atom digicam physicists say that their creation, which might map each depth and polarization at tiny scales, is an attractive different.

“Rather than bringing a camera from outside the vacuum chamber, why not use the tools already there inside our quantum playground in the vacuum?” says Takafumi Tomita, a physicist on the Institute for Molecular Science, and one other of the authors.
