Introduction

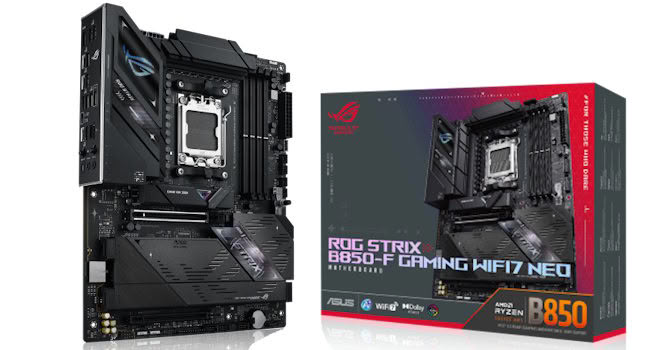

A yr and a half down the road from the discharge of the unique ROG Strix B850-F Gaming Wi-Fi7, ASUS has launched its successor. With a Neo tagged onto the top of the title, the brand new ROG Strix B850-F Gaming Wi-Fi7 Neo seems to proper just a few small wrongs with the older mannequin in a lot the identical approach as different refresh AMD motherboards throughout B850, X870 and X870E chipsets have over the previous couple of months.
In addition to a preloaded Wi-Fi driver within the new bigger 512 Mbit (64 MB) BIOS, we now have a extra DIY-focussed design and larger networking and USB speeds. The board additionally ushers in a brand new software program suite in addition to a more moderen EFI than was current on the outdated board, though each these are or will probably be obtainable on older fashions too.
There are a few areas the place options are fewer, whereas we’ll even be taking a detailed have a look at the value distinction between outdated and new too and whether or not the older mannequin is now outdated or truly higher worth, plus there’s the competitors to think about too.
Specifications
| Specifications | |
|---|---|
| CPU Support: | AMD Socket AM5 Ryzen 7000, 9000 |
| Power Design: | CPU Power: 16-phase/Vishay SiC629/80 A SOC Power: 2-phase/Vishay SiC629/80 A MISC Power: 2-phase/Vishay SiC629/80 A |
| Chipset: | AMD B850 |
| Integrated Graphics: | Supported 1× HDMI 2.1 |
| Memory: | 4× DIMM, Support as much as 256 GB DDR5-9000 (OC) |
| BIOS: | 512 Mbit (64 MB) AMI UEFI |
| Expansion Slots: | 1× PCIe Gen 5 x16 slot (x16, x8/x8, x8/x4/x4, x4/x4/x4/x4) 1× PCIe Gen 4 x16 slot (x4) |
| Storage: | 2× SATA 6 Gb/s 2× M.2 (PCIe Gen 5 x4) 2× M.2 (PCIe Gen 4 x4) |
| Networking: | 1× Realtek RTL8126 5 Gbps Ethernet 1× MediaTek MT7925 Wi-Fi 7 |
| Rear Ports: | BIOS Flashback button Clear CMOS button 1× 5 Gbps Ethernet 1× HDMI 2.1 2× USB 3.2 Gen 2 10 Gbps (Type-C) 2× USB 3.2 Gen 2 10 Gbps (Type-A) 1× USB 3.0 (Type-C) 5× USB 3.0 (Type-A) 2× USB 2.0 (Type-A) 2× Wi-Fi antenna connectors 2× Audio jacks 1x Optical S/PDIF Out port |
| Audio: | 1× Realtek ALC4080 Codec |
| Fan / Thermistor headers: | 7× 4-pin/1× 2-pin |
| Form Factor: | ATX Form Factor 12.0 × 10.5 in./30.5 × 24.4 cm |
| Exclusive Features: |
|
