100 Years of photo voltaic knowledge traces new clues on how the Sun’s floor tracks its 11-Yr Exercise Cycle

The Kodaikanal photo voltaic observatory, recognized for the oldest steady collection of photo voltaic knowledge collected in India, have helped uncover how large convection patterns on the Sun reply to photo voltaic exercise, offering insights for future photo voltaic cycle prediction.

Much like a boiling pot of water on a range, the power generated inside the Sun is transported by way of its outer layers by way of convection. Convective cells result in the formation of small-scale granulations and enormous scale supergranulations as a community construction on the photo voltaic floor.

The community cells have a median lifetime of 24 hr, and a dimension of about 30,000 km., The width of the cooler intergranular lanes is about 6000 km. What is the origin of those supergranulations, what determines their dimension, and what’s their relation with the 11 yr photo voltaic cycle proceed to be a puzzle. A current research from the Indian Institute of Astrophysics based mostly on greater than 100 years of information from the Kodaikanal Solar Observatory sheds some mild on these questions.

This noticed community arises on account of magnetic flux focus at cell boundaries as a consequence of supergranular convection. Skylab observations within the Seventies have proven that the chromospheric community extends to the transition area because the Extreme UltraViolet (EUV) community. The community is dominant within the midtransition area, and it disintegrates within the corona.

Scientists from Indian Institute of Astrophysics (IIA), an autonomous institute of the Department of Science and Technology (DST) examined the connection between the photo voltaic cycle and two bodily portions like lane widths and intensities.

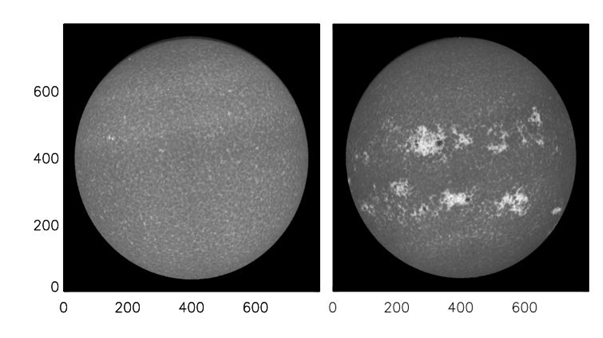

Fig: Ca II Okay spectroheliograms from Kodaikanal Solar Observatory. The picture on the left is taken through the photo voltaic minimal yr of 1913, and the one on the suitable is taken through the photo voltaic most yr of 1917.

To see how the time lag between the portions varies in numerous latitudes, the researchers led by Prof KP Raju examined the cross-correlation between these portions to see the place the correlation coefficient reaches a most.

With Lane widths and intensities at totally different latitudes from the Ca II Okay spectroheliograms from the 100-year Kodaikanal archival knowledge from 1907, the research revealed within the Astrophysical Journal Letters, analyzed 34,000 Ca II Okay photos and located that lane widths and intensities correlate strongly with sunspot numbers, peaking round +/-(11–22)° latitude. The peak correlation for lane widths happens at (18 +/- 2)°N and (20 +/- 2)°S, whereas for intensities, it’s at (13 +/- 2)°N and (14 +/- 2)°S, indicating no distinctive latitude follows the photo voltaic cycle for all portions. Lane width correlations peak throughout photo voltaic most, whereas depth correlations peak 1.25–1.5 years after photo voltaic most, suggesting a time lag of their responses to photo voltaic exercise. The research finds that the lag varies with latitude: zero close to ±20°, reducing in the direction of greater latitudes, and rising in the direction of the equator. For lane widths, the lag ranges from 0.5 to 0.8 years, whereas for intensities, it varies from 0.3 to about 2.5 years, indicating important variations of their temporal habits.

“Our findings suggest that supergranular properties, such as lane width and intensity, are influenced by local magnetic flux and solar activity levels. The study highlights the importance of understanding these correlations for predicting solar activity and its effects on solar irradiance variations, particularly in the UV spectrum”, defined KP Raju. The outcomes contribute to ongoing discussions concerning the origins of supergranulation and its position in magnetic flux transport on the photo voltaic floor.

The evaluation confirms that whereas no single latitude follows the photo voltaic cycle precisely, important correlations exist at particular latitudes for various portions. Future analysis is required to additional discover the mechanisms behind the noticed behaviors and their implications for photo voltaic dynamics and irradiance variations. The archival knowledge from Kodaikanal present precious info on greater than 9 photo voltaic cycles. The NLST with its high-resolution capabilities may even make important contributions to supergranular dynamics.
