Wutopia Lab Crafts A Whale Of A Story In China

A large, charming abstraction of a marine mammal by Wutopia Lab is a part of the narrative of a residential improvement in central China.

Fast Facts

• 37 designers, web site supervisors, and technicians led by Wutopia Lab founder Ting Yu
• 4,000 particular person parts
• 60 Tons
• 1,170 blue, gold, and white aluminum panels
• 2,605 sq. ft
• 4 months to finish

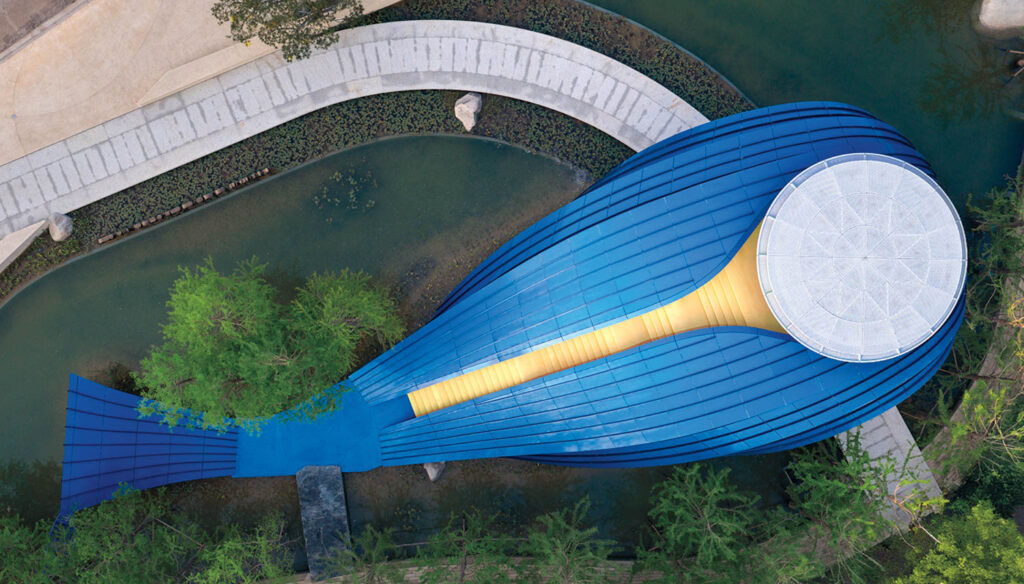

Whale Gate, proven right here in an early rendering, is the entry passageway by Wutopia Lab to Golden Island, a multibuilding residential improvement amid a artifical lake in Shangqiu, China, that marks the transition from public house to non-public and is capped by a spoutlike cover.

Led by Wutopia founder and architect Ting Yu, the advanced, curved construction, its biomorphic from impressed by the blue whale, is clad in 1000’s of aluminum-composite honeycomb panels.

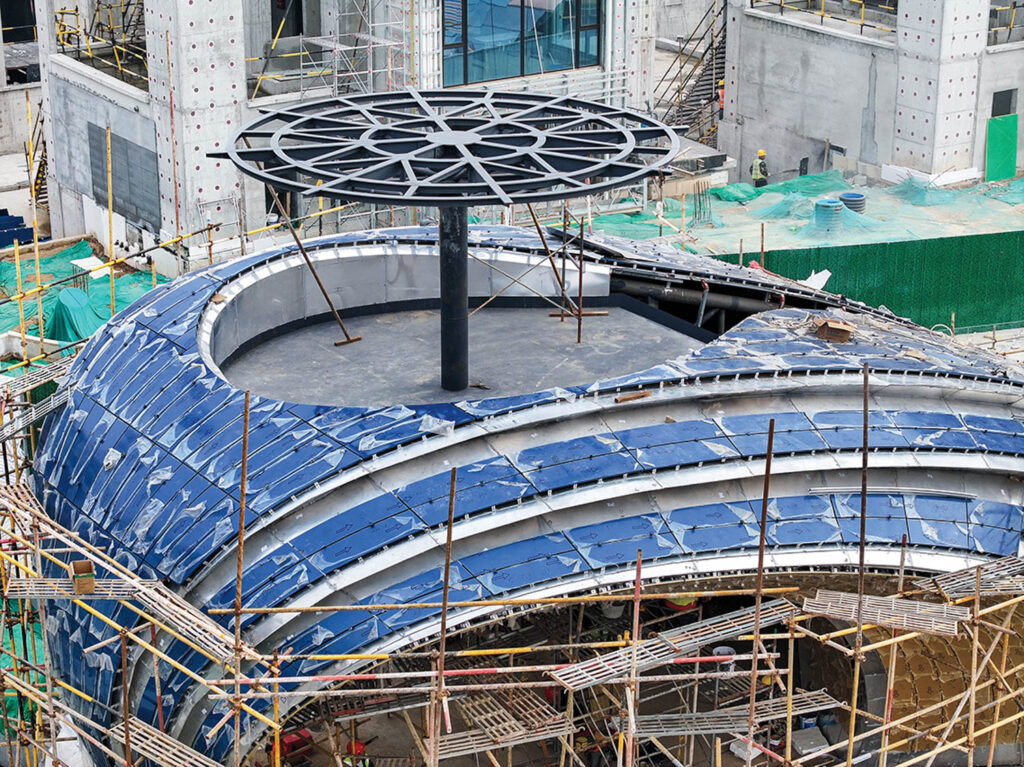

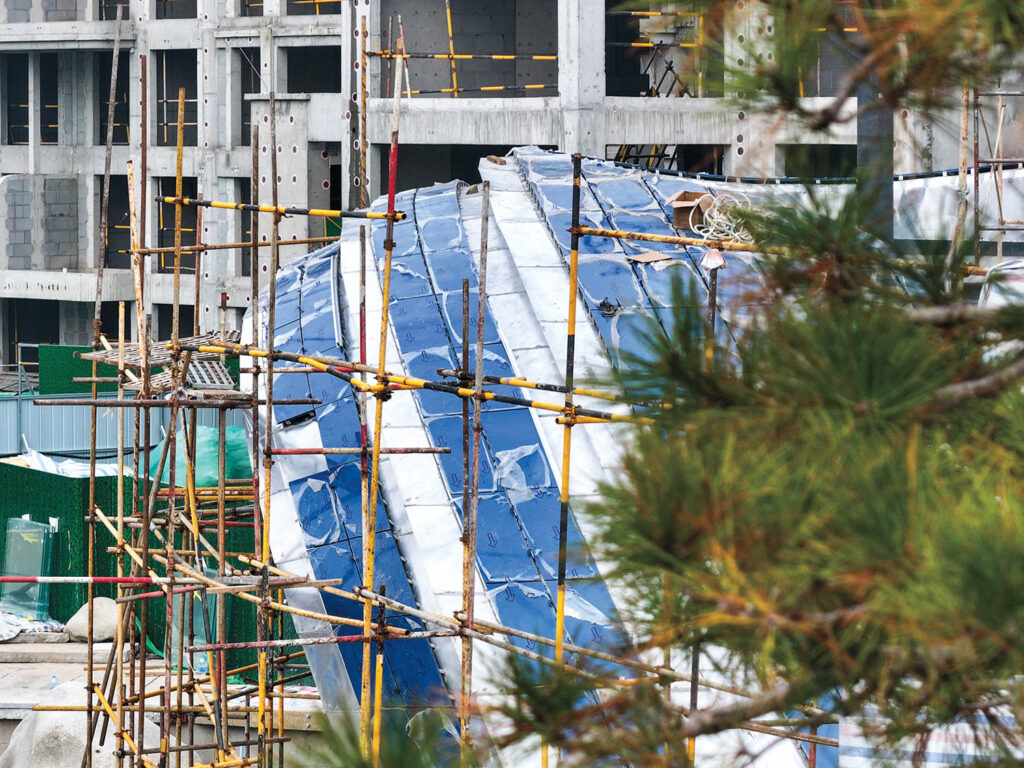

The physique and tail include a six-layer system that mixes a metal body, connection rods, waterproof metallic flashing, and the honeycomb panels.

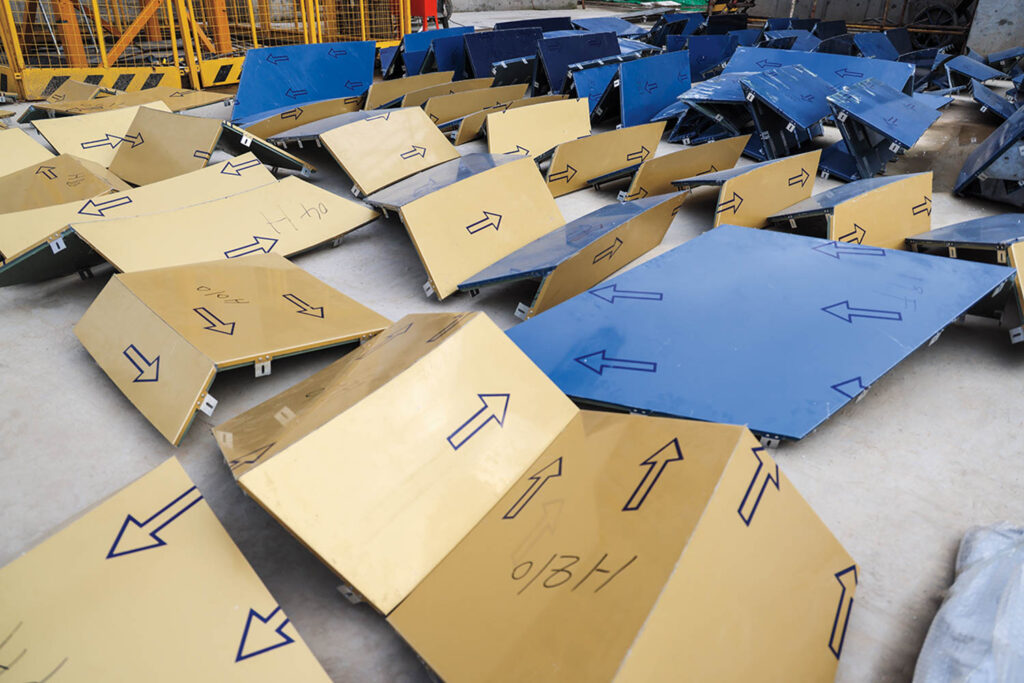

Components had been customized fabricated to satisfy the varied curves and torsions of the undulating floor, with 10,000 coordinate factors used to attain millimeter-level precision.

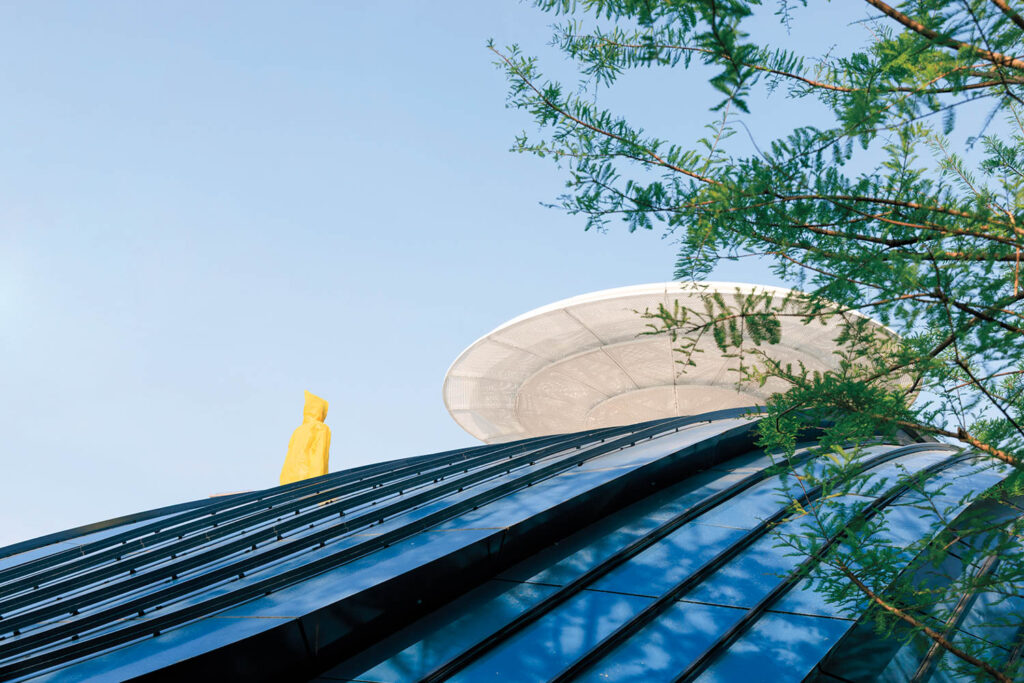

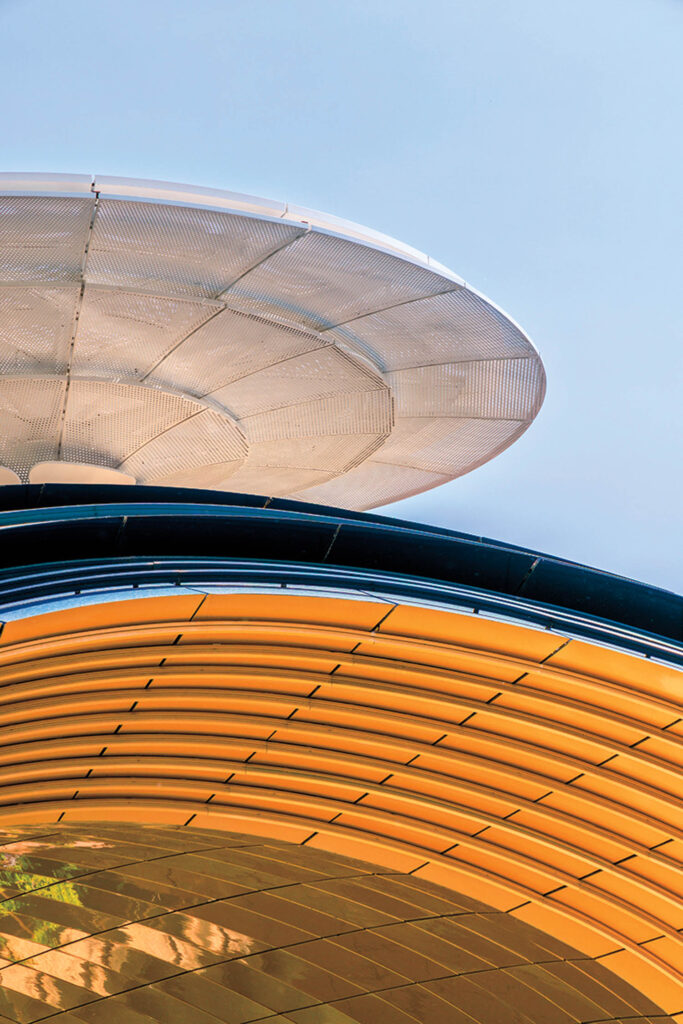

At the highest of Whale Gate, a component that implies water popping out of a whale’s spout is confronted in additional aluminum panels.

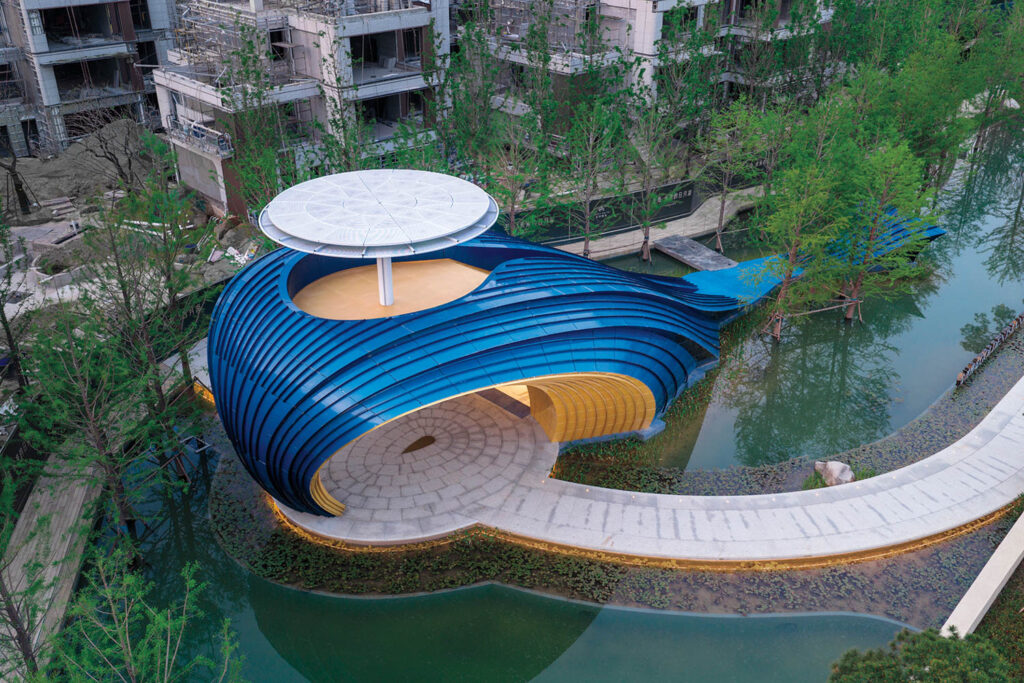

It additionally features as a cover shading an remark deck, reached by an inner stair accessible solely to Golden Island residents and overlooking the archipelago-style advanced.

The high of the spout measures 31 ft excessive.

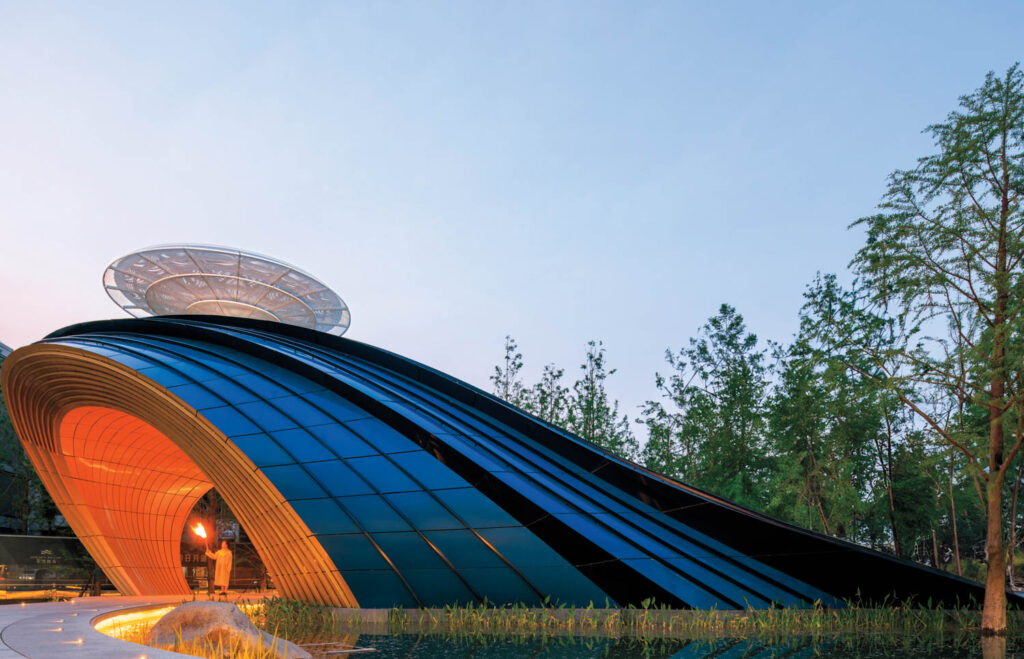

The thought of the entryway, lit by a torch at nightfall through the opening ceremony earlier this 12 months, was derived from maritime myths, the place, Yu says, “Whales occupy an ambiguous position between the familiar world and the unknown. Here, the act of returning home becomes a symbolic passage through the ‘eye’ of the whale.”
